Description

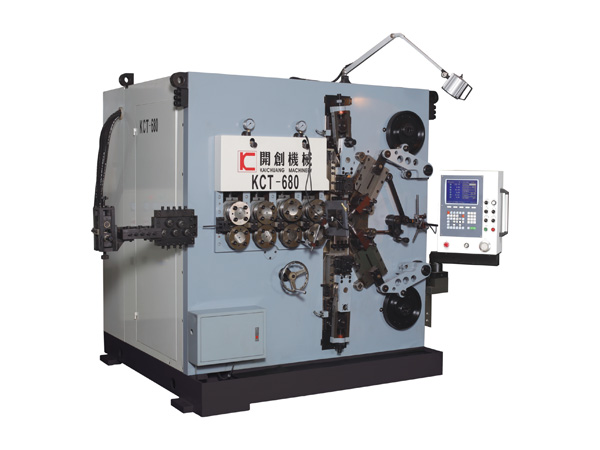

KCT-680 6 Axis CNC High-speed spring coiling machine, machining line diameter is φ3.0-8.0mm, suitable for processing all kinds of precision compression spring and simple torsion spring and other products, such as compression spring, spring mattress, pyramid spring, damping spring, spring and spring of automobile die.
Parameters
| 機 型 | Model | KCT-680 |
| 軸 數(shù) | Number Of Axis | 6 軸 |
| 加工線徑 | Wire Size Range | φ3.0-8.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ120mm |
| 最大彈簧螺距 | Max Pitch Of Spring | 100mm |
| 最大送線速度 | Max Feeding Speed | 60m/min |
| 旋繞比 | Spring Index | 4 |
| 送線輪組數(shù) | Feeding Roller Pairs | 4 Pairs（組) |
| 送線伺服電機 | Feeding Servo Motor | 25.0kw |
| 上切刀伺服電機 | Upper Cutter Servo Motor | 7.0kw |
| 下切刀伺服電機 | Under Cutter Servo Motor | 7.0kw |
| 凸輪伺服電機 | Cam Servo Motor | 3.8kw*2 |
| 螺距伺服電機 | Pitch Servo Motor | 2.7kw |
| 機器尺寸 | Dimension(LxWxH) | 2000x2200x2200mm |
| 機器重量 | Weight | 6500kg |
| 電 源 | Power AC | 3-380V 50HZ |
Our company's KCT-660 six axis CNC High-speed spring coiling machine control system used in Taiwan, reference Japan Yaskawa servo motor and high precision bearings, the standard models for 6 axes, each axis can operate independently or with synchronous operation, forming speed, stable performance and high precision the characteristics of. The model ( 680-type computer compression spring machine ) has realized the man-machine dialogue truly, has one minute spring molding ability, and in guaranteed the speed, the precision and the performance condition, strives for the noise to the minimum, pursues the simpler type operation. In addition, the machine can realize the functions of straight cutting, counter cutting and swing cutting, and has the function of high-definition photography inspection.
